Bungee & Rocket Adventure Rides
Thrilling Vertical Adventures Built for Performance and Safety

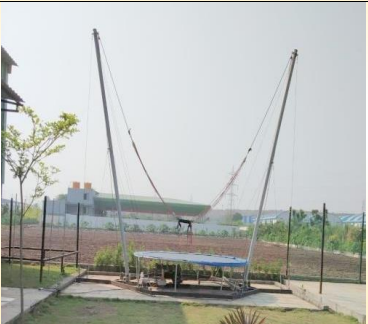

Bungee Trampoline
Height: 24 Ft
Width: 22 Ft
Length: 14 Ft
Space Required: 16 x 25 Ft
Material Used:
High-strength aluminum pipe (Ø 101 mm), high-quality ground structure.
Trampoline – 12 Ft, 12 mm static rope, bungee cord, safety harness.
Top pulley (23 KN), carabiners, 3-phase electric brake motor, worm gear box, control panel, drum, pedestal bearing.
Trampoline covering & branding: Flex star quality.

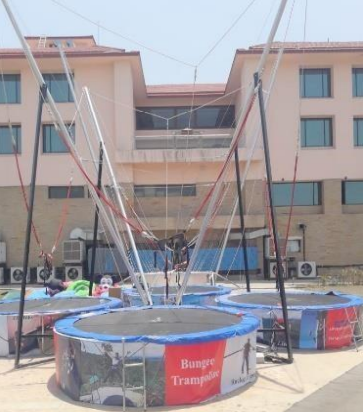

4 in 1 Bungee Trampoline
Height: 24 Ft
Width: 22 Ft
Length: 14 Ft
Space Required: 40 x 40 Ft
Material Used:
High-strength aluminum pipe (Ø 101 mm), heavy-duty ground structure.
Four-station trampoline (12 Ft each), 12 mm static rope, bungee cords, safety harness.
Top pulley (23 KN), carabiners, 3-phase electric brake motor, worm gear box, control panel, drum, pedestal bearing.
Trampoline covering & branding: Flex star quality.

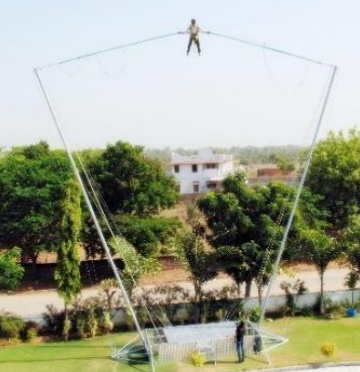

Rocket Injection
Height: 42 Ft
Length: 30 Ft
Width: 14 Ft
Space Required: 20 x 30 Ft
Structure Details:
Pole Height – 42 Ft, Base Pole – MS Structure, Checker Plate base.
High-strength aluminum pipe (Ø 150 mm), self-supported ground structure.
Components:
3 HP Brake Motor with Gear Box (3-Phase), full-body padded harness, ejection lock system, 12 mm static rope, carabiners, tap sling, and top pulley (23 KN capacity).
Durable P.O. coated finish for long-term protection.
Bring Thrill to Your Park with Bungee & Rocket Rides!
We design, manufacture, and install premium bungee and rocket rides with top-grade safety systems across India.
Get a Quote
